Application Scopes
Medium: oil, water, non-crystalline acid, alkali, salt, organic solvent, etc
Temperature: -50 ~ 220°C
Pressure: ＜4MPa
Linear velocity: ＜15 m/s
Shaft diameter: φ14 ~ φ200 mm
Viscocity: ≤300 CP

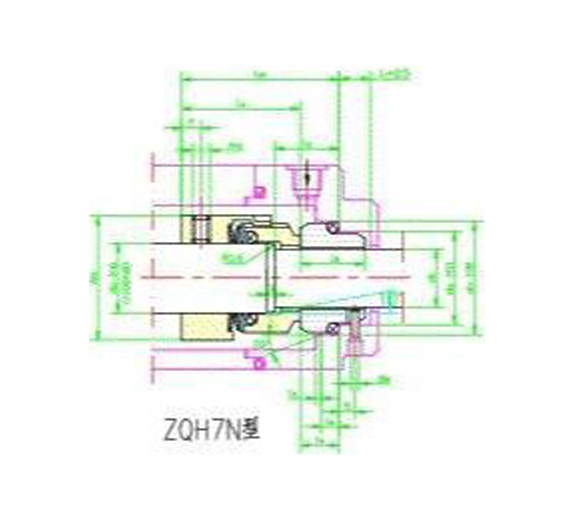

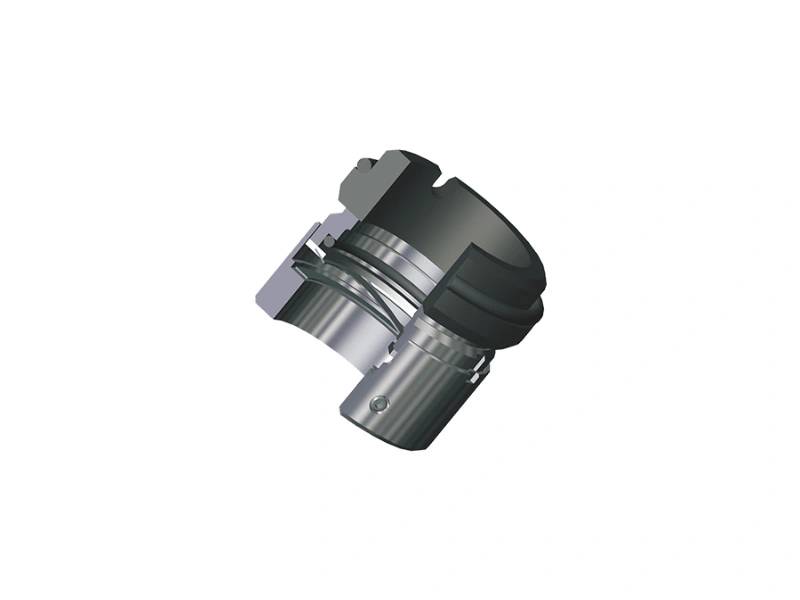

The structure is wave spring, sleeve drive, single end face seal. It has nothing to do with the direction of rotation when in use. The spring seat, spring and push ring can be pre-assembled as a single unit for easy installation.
Except for part of the axial working length (L3), the rest conforms to DIN24960 standard and is highly versatile.
