Media: Compatible with all organic and inorganic media.
Shaft Diameter (φ): > 1mm
Temperature (T): -70 ℃~550 ℃
Pressure (P): Vacuum~10MPa
Linear Velocity (V): 0-41m/s

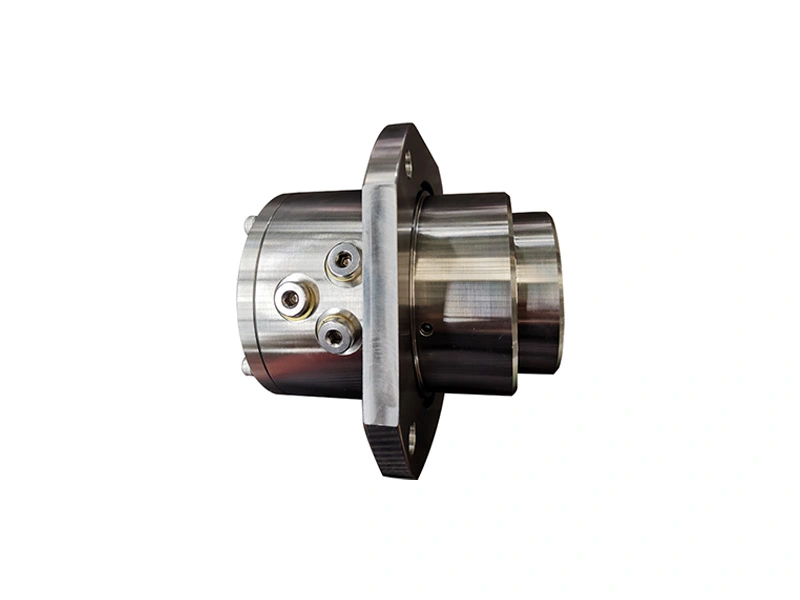

A magnetic fluid vacuum seal (MFS) for a liquid ring vacuum pump is an advanced sealing solution that offers several advantages over traditional sealing methods. The magnetic fluid vacuum seal is particularly beneficial in liquid ring vacuum pumps, which are commonly used in various industries, including pharmaceuticals, food processing, and petrochemicals, where maintaining a precise vacuum is crucial. These pumps typically handle wet, humid air or other gases mixed with entrained liquids, which can pose challenges for conventional seals.
Sealing Integrity: The magnetic fluid seal provides an exceptional level of sealing integrity. Magnetic fluid vacuum seals can effectively prevent air, vapor, and liquid leaks, which is crucial for maintaining the efficiency and vacuum level in liquid ring vacuum pumps.
No Physical Contact: Unlike traditional mechanical seals that involve contact between components and can wear out over time, magnetic fluid vacuum seals operate without physical contact. This non-contact nature of the magnetic fluid vacuum seal reduces wear and tear, leading to longer service life and lower maintenance costs.
Handling Misalignment: Due to their fluid nature and the flexibility provided by the magnetic field, magnetic fluid vacuum seals can accommodate shaft misalignments and vibrations more effectively than rigid seals. This is particularly beneficial in applications where operational conditions can lead to mechanical shifts or imbalances, making the magnetic fluid vacuum seal an ideal choice.
Operational Stability in Diverse Conditions: Magnetic fluid vacuum seals provided by Zhaoqiang, can perform reliably under varying temperature and pressure conditions, which is beneficial for processes involving thermal variations or those that require stable vacuum conditions despite external changes, showcasing the versatility and reliability of the magnetic fluid vacuum seal in various operational environments.
To implement a magnetic fluid seal in a liquid ring vacuum pump, the following considerations are necessary:

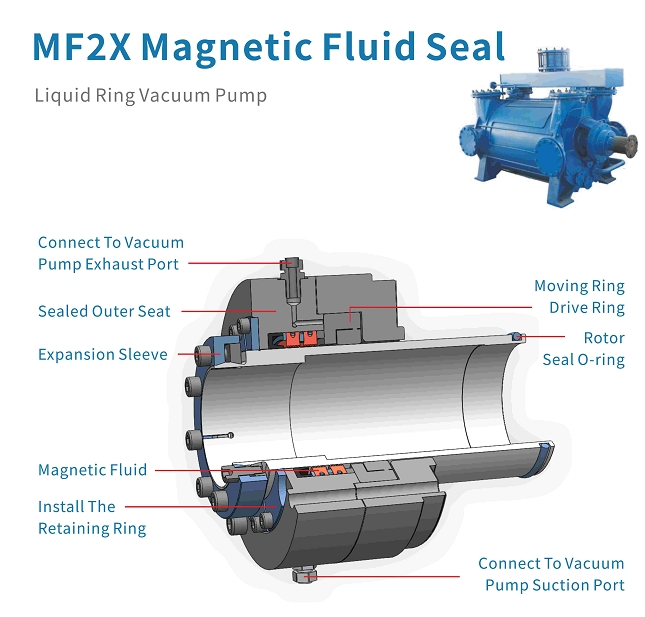

Magnet Configuration: Strong magnets are placed around the shaft in a configuration that ensures the magnetic fluid is concentrated in the gap between the shaft and the pump casing. This creates a robust and dynamic sealing barrier.
Fluid Selection: The magnetic fluid must be chosen carefully to ensure compatibility with the process media and operational conditions of the pump. The fluid should not chemically react with the process media or degrade under operational temperatures.
Seal Design: The design of the seal should ensure that the magnetic fluid is retained effectively in the desired area. This may involve specific geometries of pole pieces or additional magnetic components to shape and strengthen the magnetic field.
Magnetic Field Interference: The magnetic fields required to maintain the seal can interfere with nearby sensitive instruments or electronic devices. Shielding or strategic placement of the pump can mitigate these effects.
Cost Considerations: Magnetic fluid seals can be more expensive upfront compared to traditional seals. However, their longer lifespan and reduced maintenance requirements can offset the initial cost over time.
Leakage of Magnetic Fluid: Proper maintenance and monitoring are crucial to ensure that the magnetic fluid does not escape the seal area, which could lead to a drop in sealing efficiency.
