Application Scopes
Medium: high temperature oil, asphalt, water and other solutions
Temperature: -100 ~ 450℃
Pressure: ＜2.5 MPa
Linear Velocity: ＜15 m/s
Shaft diameter: φ45 ~ φ130 mm

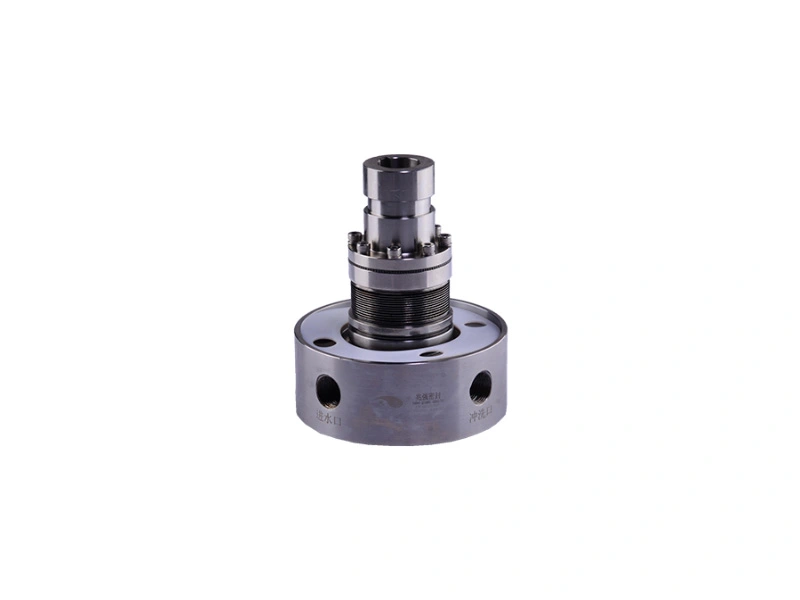

The assembly structure boasts a seal face composed of stainless steel integrated with a SiC material exhibiting a reduced expansion coefficient. The auxiliary seal ring incorporates a compressing mechanism, utilizing a temperature-resistant shim specifically designed for the task. Furthermore, it incorporates a forced external circulation cooling system. This mechanical seal is ideally suited for high-temperature applications, such as oil residual pumps and asphalt pumps within oil refineries.
